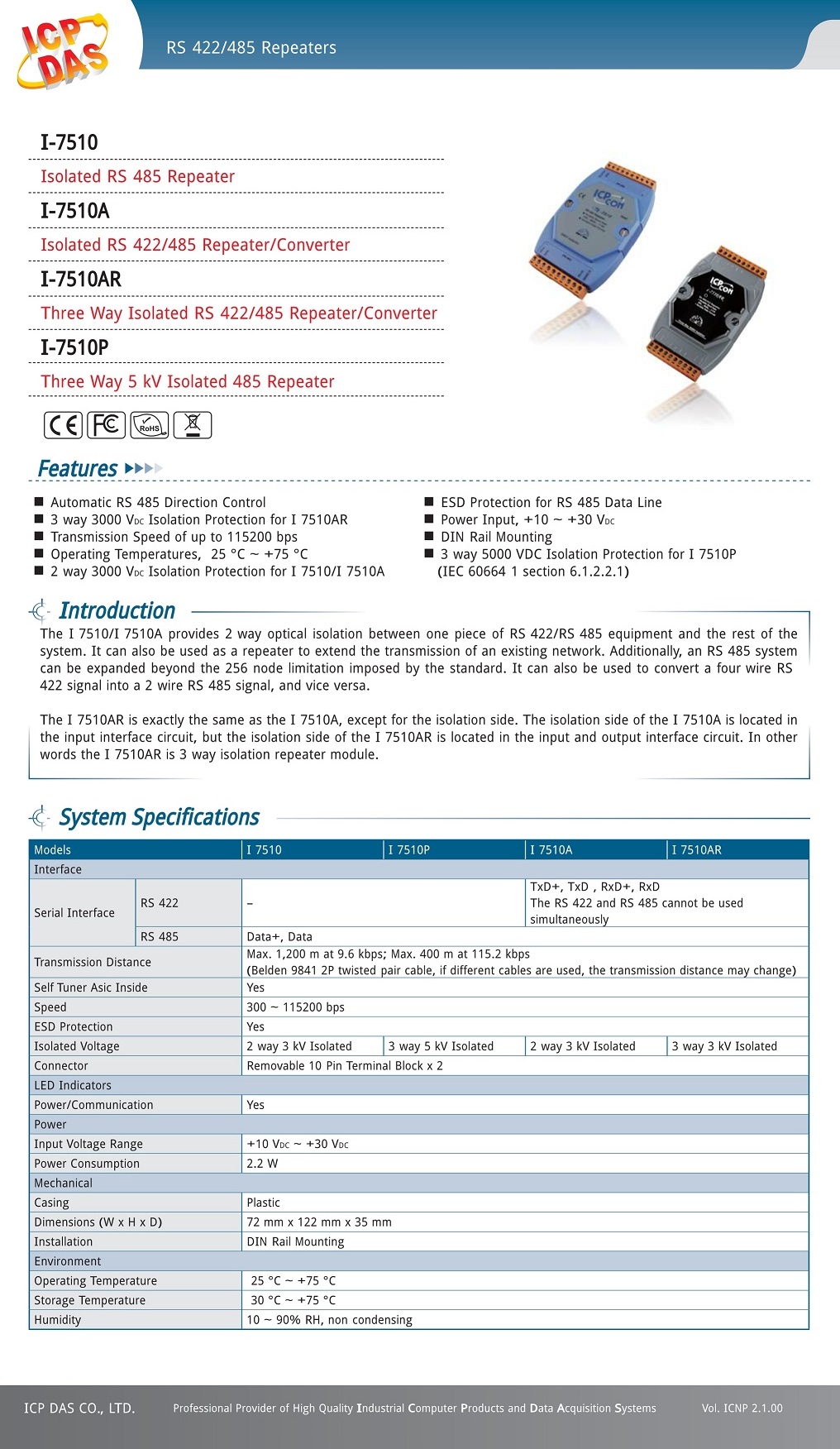

I-7510
| 特色 | |
| • | Automatic RS-485 Direction Control |
| • | 3-way 3000 VDC Isolation Protection for I-7510AR |
| • | Transmission Speed of up to 115200 bps |
| • | Operating Temperatures, -25 °C ~ +75 °C |
| • | 2-way 3000 VDC Isolation Protection for I-7510/I-7510A |
| • | ESD Protection for RS-485 Data Line |
| • | Power Input, +10 ~ +30 VDC |
| • | DIN-Rail Mounting |
| • | 3-way 5000 VDC Isolation Protection for I-7510P |
| • | (IEC 60664-1 section 6.1.2.2.1) |
共通規格
